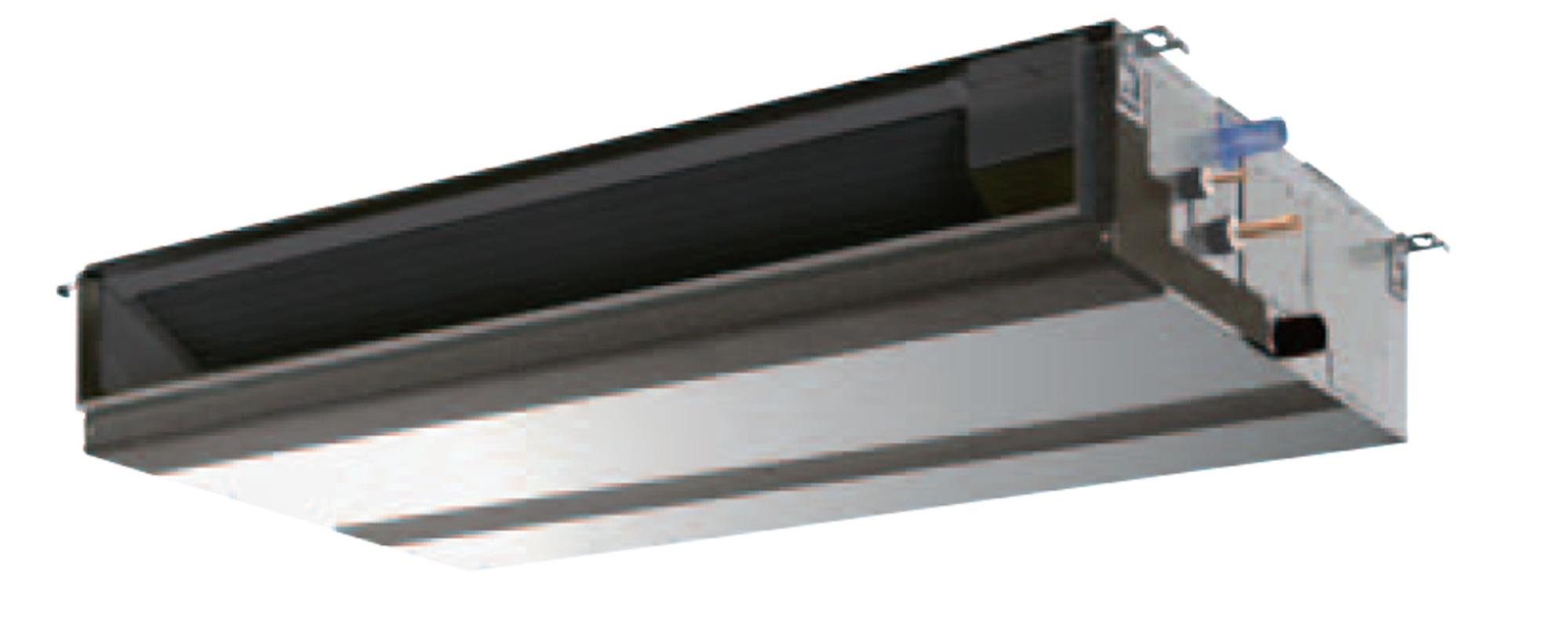

Ceiling Concealed (PEFY-P VMA(L)-E & PEFY-P VMA3-E)
This product is suitable for Office, School, Residence, and Hotel applications.

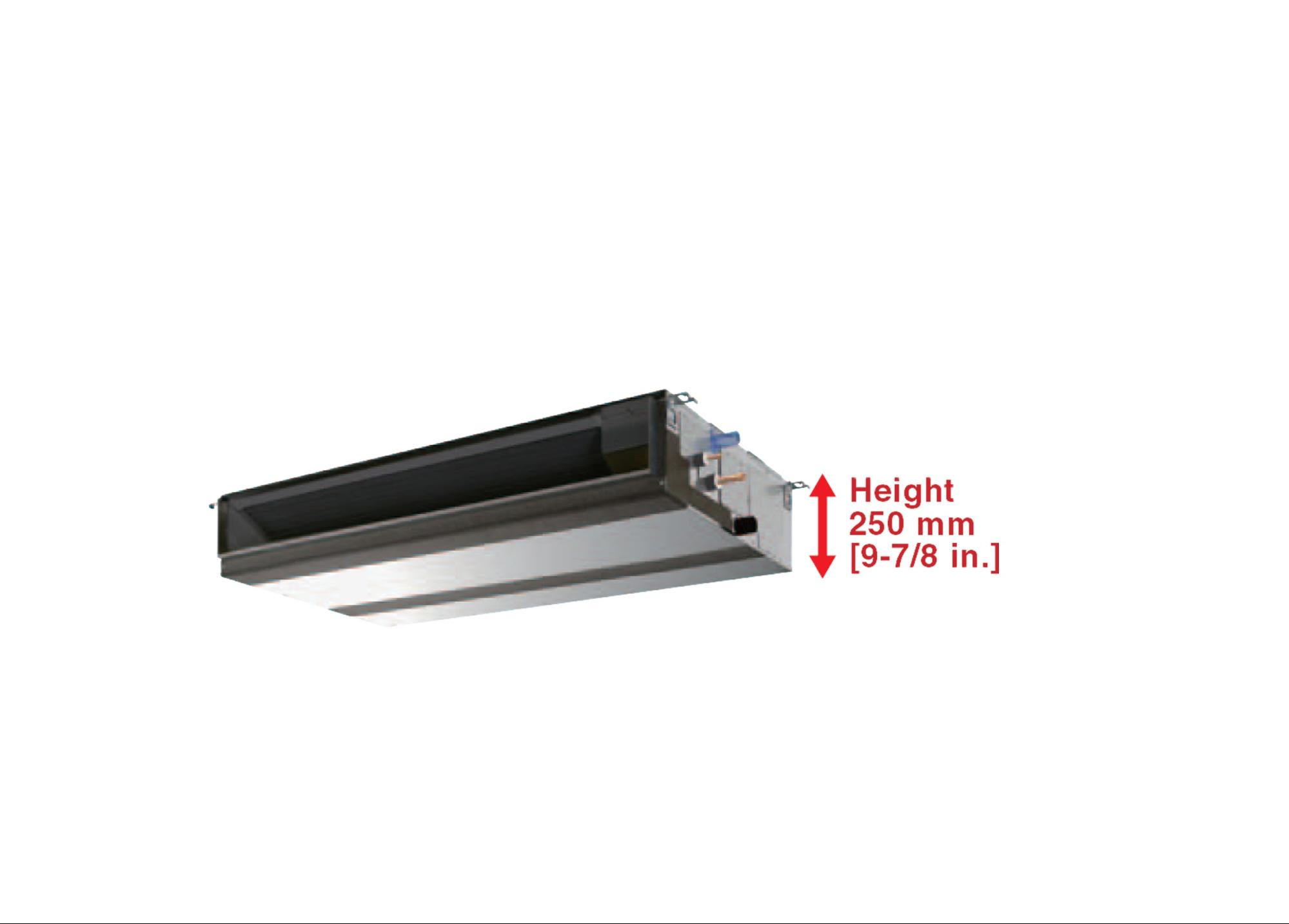

Thin body design with a height of only 250 mm [9-7/8 in.] (all models) enables installation in a 280mm [-11 in.] high ceiling space

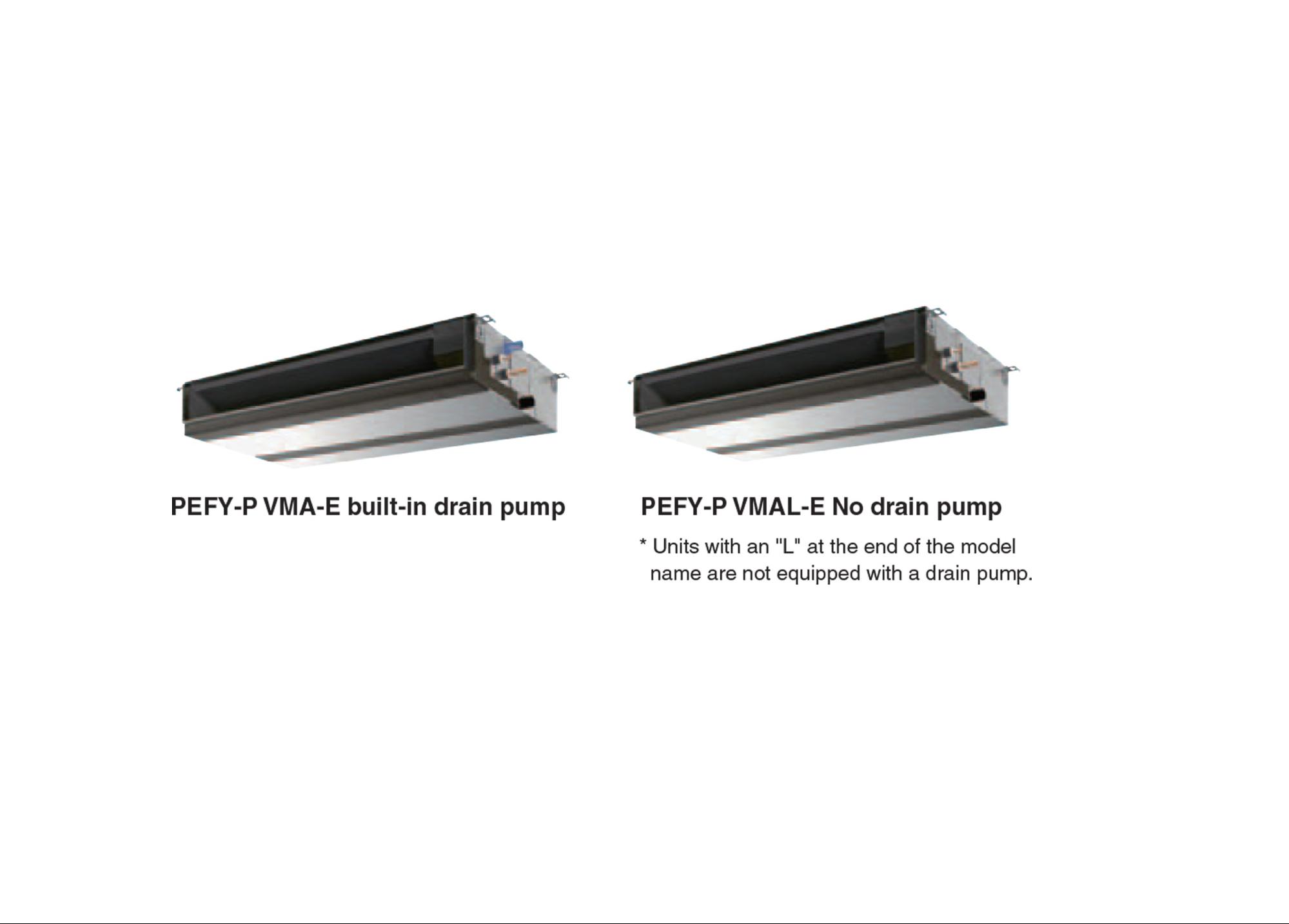

The line up consists of two types; models with or without a built-in drain pump, thus allowing more freedom in piping layout design.

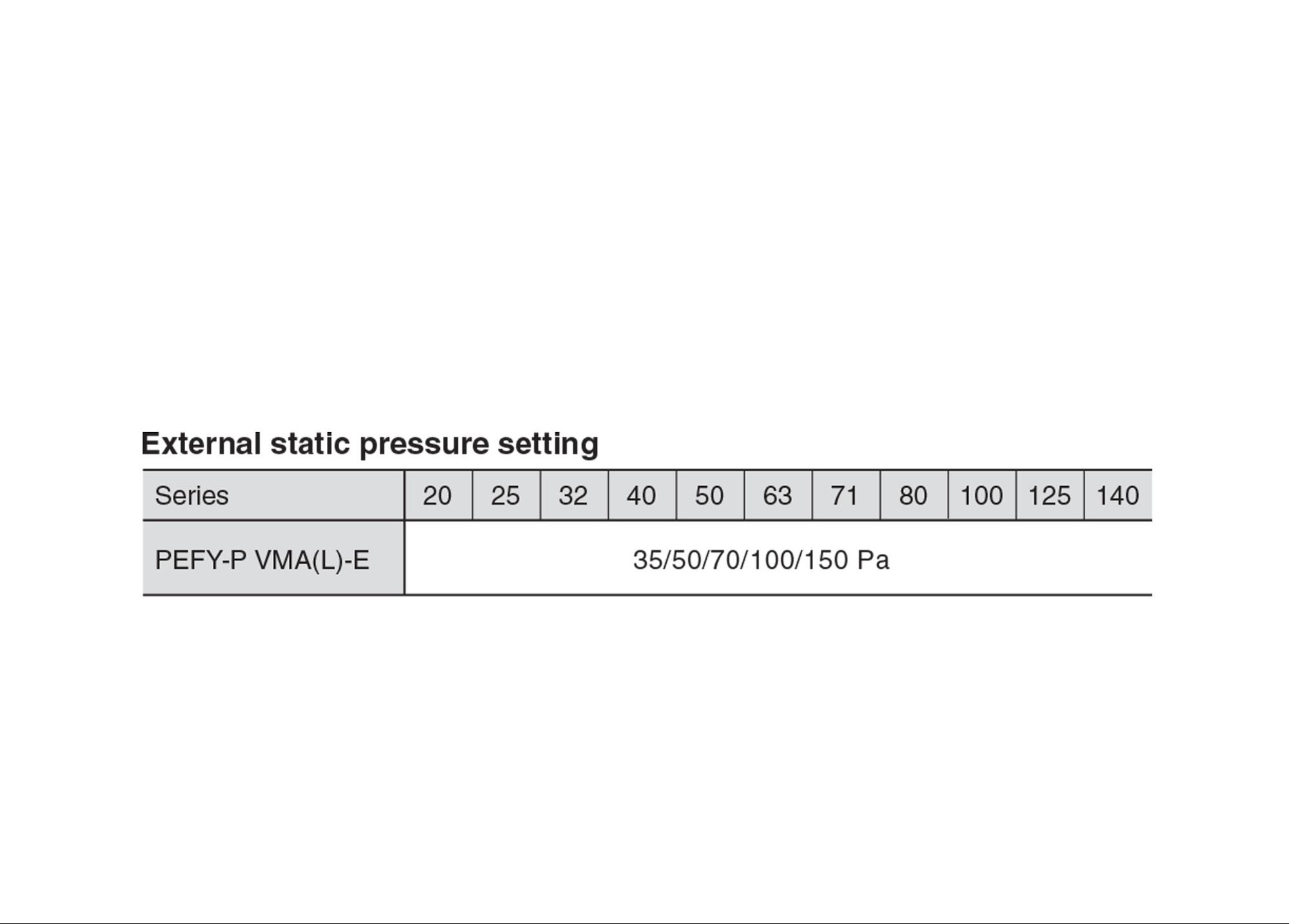

Five-stage external static pressure settings provide flexible for duct extension, branching, and air outlet configuration, and are adjustable to meet different application conditions. Setting ranges to a maximum of 150 Pa.
The air inlet position can only be changed between rear and bottom by switching the positions of the closing plate and air filter. (The factory default is bottom inlet.)
Click Image to see full specification.
